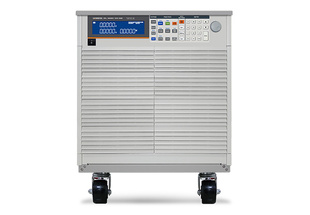

GW Instek PEL-5010C-1200-400 Programmable DC electronic load

Ingyenes szállítás

Maximum power up to 192KW
Up to 8 units of master/slave parallel control
5-digit digital voltage, current and power meter
Large LCD Display
Display voltage value, current value, watt value at the same time
Suitable for power factor regulator (PFC) testing (600V, 1200V models)
Automatically perform OCP, OPP test
The power-on state value can be set
Constant current, constant resistance, constant voltage, constant power, constant current + constant voltage, constant power + constant voltage, dynamic and short circuit modes
Short circuit time can be set during short circuit test
Over current, over power, over temperature protection and over voltage warning
Voltage polarity display can be set to positive value ("+") or negative value ("-")
Support solar panel MPPT test
Optional interface: GPIB, RS232, USB, LAN

More detailed specifications and dimensions of avalable models are in data sheet. Részletes információk

További termékek a kategóriában

nettó ár	€ 14 729,00
bruttó ár	€ 18 705,83
Kérjük, töltse ki a kötelező mezőket
Elérhetőség	Kérésre
Termékkód	GW_PEL-5010C-1200-400

Kapcsolódó termékek
kiegészítők

Szavatosság 24 hónap

A gyártó weboldala

Részletes információ
Videók és letöltések

Részletes leírás GW Instek PEL-5010C-1200-400 Programmable DC electronic load

GW Instek PEL-5000C series single-channel electronic load provides 150V/ 600V/ 1200V models with a power range of 6kW~24kW. PEL-5000C has a total of 24 models featuring different combinations of power, voltage, and current. It can test and verify the specifications of batteries, electric vehicle chargers/charging stations, electric vehicle batteries and solar panels. PEL-5000C supports parallel connection for same voltage specification and different power models. PEL-5000C can support up to 8 units connected in parallel to provide a maximum power of 192kW.

For the scenario of battery testing, PEL-5000C specifically provides four battery discharge modes, namely CC+CV battery discharge test mode, CP+CV battery discharge test mode, CC+ UVP battery discharge test mode, and CP+ UVP battery discharge test mode. Users can choose a suitable test mode according to the test requirements. In addition to the four battery discharge modes, PEL-5000C also provides Time period discharge, Pulse discharge, and RAMP discharge modes. Users can set the discharge time, or discharge in the pulse current mode, or even set the rising/falling slew rate of the discharge current. These functions can be very flexible in the simulation of the battery discharge current waveform when an electric vehicle is running.

In order to meet the verification requirements of different DUTs, PEL-5000C provides a variety of test functions, including inrush current test mode, solar panel MPPT test mode, automated OCP, OPP test functions and 150 sets of parameter storage function. The 1200V model of PEL-5000C not only provides full power output at 1000V, but also provides 60% power output at 1200V output, which is higher than the 50% power output of other manufacturers of similar electronic loads. High-voltage batteries or chargers directly connected to the electronic load may cause damage to the electronic load. PEL-5000C has a built-in slow starter, which not only protects the DC load, but also saves the user's installation cost and setting time for measurement.
