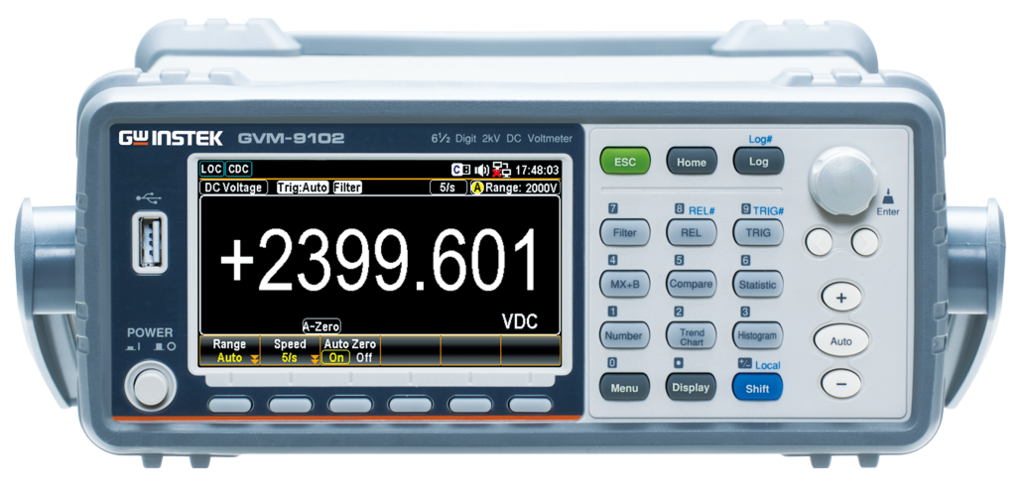

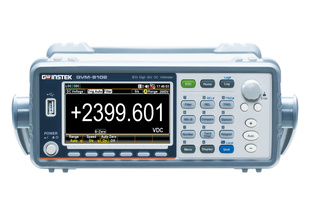

GW Instek GVM-9102 6 1/2 Digit- 2 kV DC Voltmeter

Ingyenes szállítás

6 1/2 Digit Display: 2,399,999 Counts max.
4.3 TFT Graphic LCD
DC voltage measurement up to 2400 V
DCV Basic Accuracy:0.01%
The fastest sampling rate:10k Readings/sec
USB Storage function available
Graphic display capability, providing histogram, bar meter and trend chart
Standard interfaces : Digital I/O, RS-232C, USB Host/Device, LAN
Option interface : GPIB

More detailed specifications and dimensions of available models are specified in data sheet. Részletes információk

További termékek a kategóriában

nettó ár	€ 847,00
bruttó ár	€ 1 075,69
Kérjük, töltse ki a kötelező mezőket
Elérhetőség	Kérésre
Termékkód	GW_GVM-9102

Kapcsolódó termékek

Szavatosság 24 hónap

A gyártó weboldala

Részletes információ
Videók és letöltések

Részletes leírás GW Instek GVM-9102 6 1/2 Digit- 2 kV DC Voltmeter

GW Instek launches GVM-9102 6 ½ digit 2 kV Voltmeter, featuring high precision DC voltage accuracy, fast sampling rate, 6 mathematical functions (dB/dBm/Compare/ MX+B/Percent and 1/X) as well as a variety of communications interfaces (USB device/host, RS-232C, LAN, digital I/O and optional GPIB) to provide comprehensive measurement capabilities, higher speed and accuracy, making it particularly suitable for output measurement of energy storage devices, photovoltaic devices or DC power supply devices.

The GVM-9102 provides DC voltage measurement up to 2400 V without the need for attenuators, effectively reducing measurement losses and errors. In addition, the GVM-9012 also features math functions (dB, dBm, comparison, MX+B, 1/X and percentage), statistical functions (min/max/avg/P-P/STDEV) and various standard communication interfaces. Whether operated as a desktop or installed in a system, the GVM-9102 can meet specific measurement requirements and complex measurement applications.
