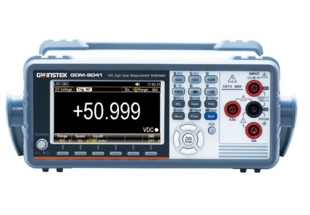

GW Instek GDM-9041 50000 COUNTS DUAL MEASUREMENT DMM WITH USB DEVICE

Ingyenes szállítás

GW Instek GDM-9041 50000 COUNTS DUAL MEASUREMENT DMM WITH USB DEVICE


  • 50,000 Counts
  • 4.3 TFT Graphic LCD
    •
  • DCV Basic Accuracy: 0.02 %
    •
  • A. I. Measurement offers automatic identification and measurement for Voltage, Resistance, Diode, or Continuity tests without the need for manual selection
    •
  • 11 Measurement Functions: DCV, ACV, DCI, ACI, 2-wire Resistance, Frequency, Period, Diode, Continuity, Capacitance and Temperature
    •
  • True RMS (AC, AC+DC) measurements
  • Dual Measurement Function to Providing Two Selected Measurement Simultaneously
  • Max./Min., REL, MX+B, 1/X, Ref%, Compare, Hold, dB, dBm
  • Standard Interfaces: USB Device (support USBCDC & USBTMC)
  • Temperature measurement function (GDM-9042 only)
  • USB storage for Data collection (GDM-9042 only)

More detailed specifications and dimensions of available models are specified in data sheet. Részletes információk

További termékek a kategóriában
nettó ár € 380,00
bruttó ár € 482,60
 Kérjük, töltse ki a kötelező mezőket
Elérhetőség Kérésre
Termékkód GW_GDM-9041

Szavatosság 24 hónap

A gyártó weboldala

Részletes leírás GW Instek GDM-9041 50000 COUNTS DUAL MEASUREMENT DMM WITH USB DEVICE

A. I. (Automatic Identification) Measurement - AUTO is no longer just for switching ranges

GW INSTEK rolls out the new Dual Measurement Multimeter -- the GDM-904x series, which has two models -GDM-9041 and GDM-9042, to replace the existing GDM-834x series. Its exceptional features include 50,000 counts, LCD display, 0.02% basic DC voltage accuracy, Automatic Identification (A.I.) measurement and a USB protocol connector to provide users with measurement precision, lucid data observation, smooth measurement experience and the convenience to connect with the personal computer.

The GDM-904x series not only supports the fundamental measurement items provided by general multimeters, but also equips with capacitance and temperature measurement functions. At the same time, the GDM-904x series’ Automatic Identification (A.I.) measurement can automatically identify measurement signals and switch measurement items before performing measurements, without the need for users to switch manually. Furthermore, the GDM-904x series also provides many math functions to meet the measurement requirements for manufacturing process tests, educational experiments and testing facilities.

With respect to storing and retrieving data, the GDM-904x series has two methods to offer: first, the USB flash drive storage function --- operating alone without connecting with a computer; second, USB interface (support USBCDC and USBTMC) and optional GPIB interface (must be installed in factory) for automatic measurement system users to conveniently save and retrieve data.

Automatic Identification (A.I.) Measurement - A. I. (automatic identification) Measurement offers a seamless testing experience, automatically selecting the appropriate function for voltage, resistance, diode, or continuity tests without the need for manual selection.

Fel

Megjelenítésvideók és letöltések

Videók és letöltések GW Instek GDM-9041 50000 COUNTS DUAL MEASUREMENT DMM WITH USB DEVICE

GW Instek GDM-9041/9042 DMM Data Sheet
