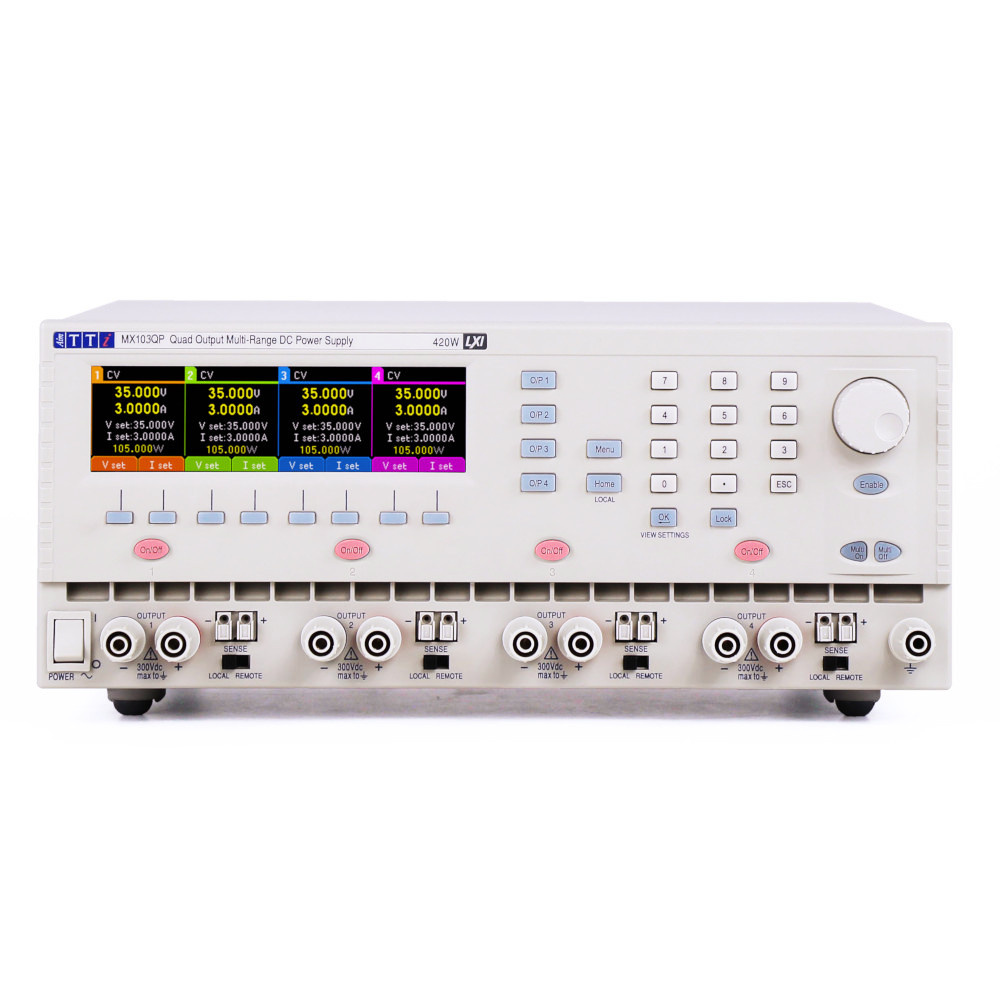

AIM-TTI_MX103QP S2 4 output multi range SELV 420W combined output, USB/RS232/LAN(LXI) option GPIB

Ingyenes szállítás

AIM-TTI_MX103QP S2 4 output multi range SELV 420W combined output, USB/RS232/LAN(LXI) option GPIB


  • Four high performance outputs each with full functionality
  • Range switching gives variable voltage/current combinations
  •
  • Shared power mode provides double power from a single output
  •
  • Low output noise and ripple via linear final regulation
  •
  • High setting resolution of up to 1mV and 0.1mA
  •
  • Variable OVP and OCP trips on all outputs which can be linked (MX-Q Series 2 units only)
  •
  • Individual or combined output on/off control with programmable delay sequencing
  • Selectable voltage tracking (isolated tracking)
  • Selectable current meter averaging
  • Switchable remote sense capability
  • Graphic LCD (colour on Series 2) provides simultaneous output metering
  • Numeric or spin-wheel control of all parameters
  • 50 setting memories per output plus 50 linked memories
  • 3U rack case for bench or rack mounting
  • RS-232, USB and LAN (LXI) interfaces
  • GPIB option
  • Duplicate power & sense terminals at rear
  • Software control from Test Bridge software (free download)
  • Series 2 ("S2") models add:

  • Colour display
  • Enhanced channel power sharing
  • 'TripLink' feature: Link channels to trip together on OVP or OCP
  • New MX103Q SELV Model

More detailed specifications and dimensions of available models are specified in data sheet. Részletes információk

nettó ár € 1 800,00
bruttó ár € 2 286,00
 Kérjük, töltse ki a kötelező mezőket
Elérhetőség Kérésre
Termékkód AIM-TTI_MX103QP S2

Szavatosság 36 hónap

Részletes leírás AIM-TTI_MX103QP S2 4 output multi range SELV 420W combined output, USB/RS232/LAN(LXI) option GPIB

The MX series uses mixed mode regulation to provide up to 420W of power split across up to four outputs, offering full capabilities on all outputs. Each output features simultaneous high resolution metering, switchable remote sensing, OVP and OCP trips, CV or CI operation and an individual output switch. To increase its ability to match the widest range of applications, each output has more than one range giving the choice of higher voltage or higher current.

Power sharing in the MX100Q/QP & MX103Q/QP allows up to 210 watts from a single output (105 watts O/P4 on the MX103Q/QP), without disabling other outputs. When a higher power level is needed on the MX100T/TP & MX180T/TP models, up to two outputs can be disabled to provide twice the power from one or two outputs - up to 210 watts for the MX100T/TP and up to 360 watts for the MX180T/TP.
