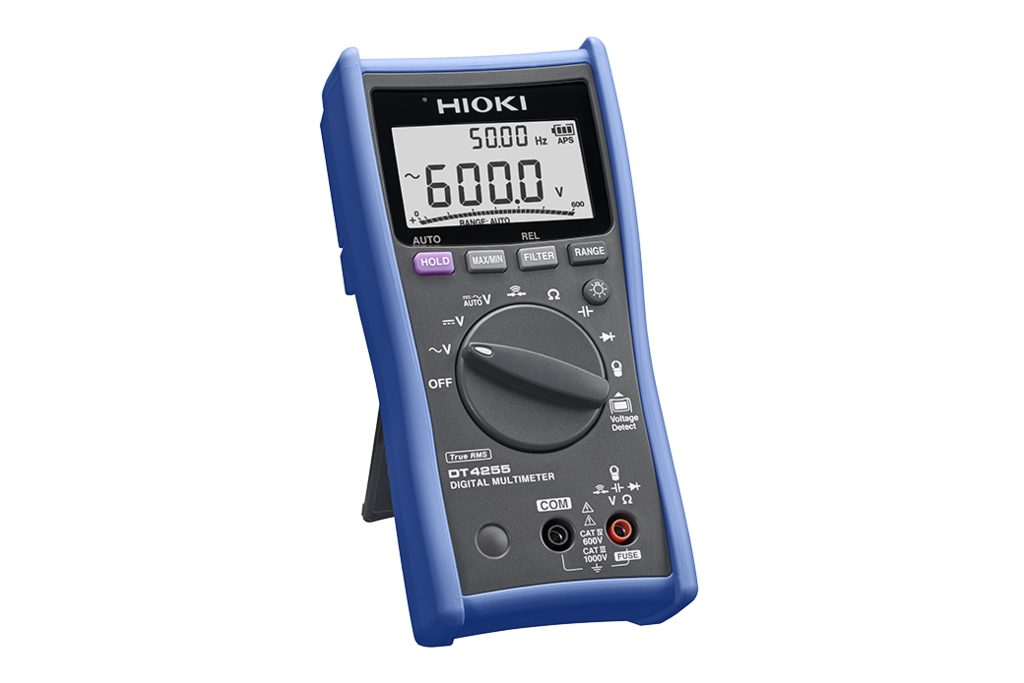

Hioki DT4255 Digital Multimeter with fused measurement terminals, current-limiting resistor
Hioki DT4255 Digital Multimeter with fused measurement terminals, current-limiting resistor
- DC Voltage range: 600.0 mV to 1000 V, 5 ranges, Basic accuracy: ±0.3 % rdg. ±3 dgt.
- AC Voltage range 6.000 V to 1000 V, 4 ranges, Frequency characteristics: 40 Hz to 1 kHz. Basic accuracy 40 - 500 Hz : ±0.9 % rdg. ±3 dgt. (True RMS, crest factor 3)
- AUTO AC/DCV: Yes
- Resistance range 600.0 Ω to 60.00 MΩ, 6 ranges, Basic accuracy: ±0.7 % rdg. ±3 dgt.
- AC Current range (use with Clamp on probes): 10.00 A to 1000 A, 7 ranges, Add the Clamp on probe accuracy to basic accuracy 40 - 1 kHz : ±0.9 % rdg. ±3 dgt. (True RMS, crest factor 3)
- Voltage detection Hi: AC40 V to 600 V, Lo: AC80 V to 600 V
- Capacitance range 1.000 μF to 10.00 mF, 5 ranges, Basic accuracy: ±1.9 % rdg. ±5 dgt.
- Frequency range 99.99 Hz to 99.99 kHz, 4 ranges (limited by the minimum detectable voltage), Basic accuracy: ±0.1 % rdg. ±1 dgt.
- Continuity check: Continuity threshold [ON]: 25 Ω or less , [OFF]: 245 Ω or more, Response time: 0.5 ms or more
- Diode test Open terminal voltage: 5.0 V or less, Testing current 0.5 mA or less, Threshold of forward voltage: 0.15 V to 1.5 V
- Other functions Filter function, display value hold, auto hold, MAX/MIN/Average value display, relative value display, auto-power save, USB communication (option)
- Display Main and Sub displays: 4-digits LCD, max. 6000 digits, bar graph
- Power supply LR03 alkaline batteries ×4, Continuous use: 130 hours (backlight OFF)
- Included accessories Test lead L9207-10 ×1, Holster ×1, Instruction manual ×1, LR03 alkaline battery ×4
More detailed specifications and dimensions of available models are specified in data sheet. Részletes információk
nettó ár | € 178,00 |
bruttó ár | € 226,06 |
Elérhetőség | Kérésre |
Termékkód | HIOKI_DT4255 |
Szavatosság 36 hónap
Részletes leírás Hioki DT4255 Digital Multimeter with fused measurement terminals, current-limiting resistor
The Hioki DT4200 Digital Multimeter Series consist of a complete lineup of 9 models ranging from professional to industrial to pocket meters, delivering a super fast response rate and safety features that take electrical testing to a higher level. The DT4221 is a pocket-sized digital multimeter designed specifically for electrical work requiring optimal safety, with ±0.5% DC V accuracy and wide 40 Hz to 1 kHz AC V bandwidth.
Videók és letöltések Hioki DT4255 Digital Multimeter with fused measurement terminals, current-limiting resistor
