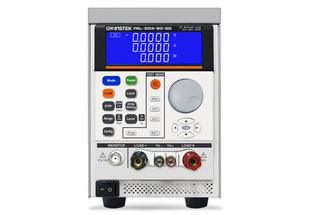

GW Instek PEL-503-80-50 DC electronic load 250W, 50A, 80V

Ingyenes szállítás

GW Instek PEL-503-80-50 DC electronic load 250W, 50A, 80V


  • 5-digit digital voltage, current and power meter
  • Simultaneous display of voltage, current, and watts
  • Short-circuit time can be set during short-circuit test
  • Automatic test function of overcurrent protection/overpower protection
  • The battery discharge test function can set the discharge stop voltage (Vbatt), discharge capacity (AH, WH) and stop discharge time.
  •
  • Surge test can simulate boot overshoot current and transient current from hot plugging.
  •
  • Constant current, constant resistance, constant voltage, constant power and Dynamic mode
  • Overvoltage, overcurrent, over power, over temperature protection and reverse polarity detection
  • Voltage polarity display can be set to positive value ("+") or negative value ("-")
  • Communications interface: RS232, USB



Az egyes termékeknél feltüntetett leírások tájékoztató jellegűek. A H TEST a.s. nem vállal felelősséget a www.htest.hu és eshop.htest.hu oldalon lévő, esetlegesen előforduló hibákért, valamint pontatlanságokért – melyekért szíves elnézésüket kérjük. Pontos, részletes és érvényes leírások az adott termék/műszaki adatlapján találhatók, mely a gyártók honlapjáról tölthetők le. Részletes információk

nettó ár € 1 134,00
bruttó ár € 1 440,18
 Kérjük, töltse ki a kötelező mezőket
Elérhetőség Kérésre
Termékkód GW_PEL-503-80-50

Szavatosság 24 hónap

Részletes leírás GW Instek PEL-503-80-50 DC electronic load 250W, 50A, 80V

The PEL-500 series single-channel electronic load has a total of 5 models and provides 0~80V/ 0~500V voltage operating ranges and 250~700W power operating range. The series can be applied to R&D, quality control, ATE system and production test, including voltage source/current source test; switching power supply transient response; constant voltage mode for current limiting test; battery simulation; and battery discharge test.
