PicoScope 6000

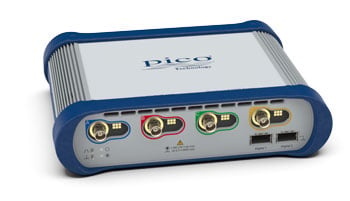

PicoScope 6428E-D 3 GHz, 4 channel oscilloscope
PicoScope 6428E-D 3 GHz, 4 channel oscilloscope
- 8/10/12bit resolution
- 3 GHz bandwidth
- A choice of 4 (up to 3 GHz) or 8 (up to 500 MHz) analog channels
- 200 ms capture time at 5 GS/s
- Up to 4 GS capture memory
- 300 000 waveforms per second update rate
- 38 serial protocol decoder/analyzers included
- Free PicoScope 6 and PicoSDK software
- High-resolution time-stamping of waveforms
- 8-bit to 12-bit FlexRes® ADC
- Up to 10 GS/s
- Advanced triggers: edge, window, pulse width, window pulse width, level dropout, window dropout, interval, runt, rise/fall time and logic
More detailed specifications and dimensions of available models are specified in data sheet. Részletes információk
nettó ár | € 19 355,00 |
bruttó ár | € 24 580,85 |
Elérhetőség | Kérésre |
Termékkód | PT_PQ344 |
Szavatosság 24 hónap
Részletes leírás PicoScope 6428E-D 3 GHz, 4 channel oscilloscope
The PicoScope 6000E Series fixed-resolution and FlexRes oscilloscopes provide 8 to 12 bits of vertical resolution, 1 GHz bandwidth and 5 GS/s sampling rate, and now includes the four-channel PicoScope 6428E-D which offers 3 GHz bandwidth and 10 GS/s maximum sampling rate.
Models with four or eight analog channels have the timing and amplitude resolution you need to reveal critical signal integrity issues such as timing errors, glitches, dropouts, crosstalk and metastability issues.
