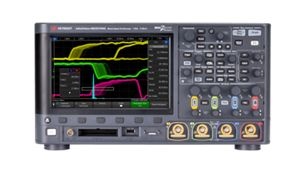

Keysight MSOX3012G InfiniiVision Oscilloscope, mixed signal, 2+16-channel, 100 MHz, w/ Wavegen

Ingyenes szállítás

Keysight MSOX3012G InfiniiVision Oscilloscope, mixed signal, 2+16-channel, 100 MHz, w/ Wavegen

Promotion: Free Ultimate SW Bundle with the purchase of this product. Closer info and other promotions HERE.


  • Maximum sample rate: 5 GSa/s half channels, 2.5 GSa/s all channels
  •
  • Maximum memory depth: 4 Mpts half channels, 2 Mpts all channels
  •
  • Display size and type: 8.5-inch capacitive touch gesture-enabled display
  •
  • Waveform update rate > 1,000,000 waveforms per second
  •
  • Built-in function/arbitrary waveform generator
  •
  • Frequency response analysis (Bode plots)
  •
  • Mask testing
  •
  • Maths functions
  • Serial busses decoding
  • 7-in-1 instrument integration
  • Segmented memory
  • Zone touch trigger

Az egyes termékeknél feltüntetett leírások tájékoztató jellegűek. A H TEST a.s. nem vállal felelősséget a www.htest.hu és eshop.htest.hu oldalon lévő, esetlegesen előforduló hibákért, valamint pontatlanságokért – melyekért szíves elnézésüket kérjük. Pontos, részletes és érvényes leírások az adott termék/műszaki adatlapján találhatók, mely a gyártók honlapjáról tölthetők le. Részletes információk

nettó ár € 6 640,00
bruttó ár € 8 432,80
 Kérjük, töltse ki a kötelező mezőket
Elérhetőség 7 hét
Termékkód MSOX3012G

Szavatosság 36 hónap

Részletes leírás Keysight MSOX3012G InfiniiVision Oscilloscope, mixed signal, 2+16-channel, 100 MHz, w/ Wavegen

Meet the new generation of Keysight’s industry leading InfiniiVision X-Series oscilloscopes. With the best in usability, a comprehensive front pael wih quick access buttons, easy-to-use touch operation or mouse-based control through direct connection or web-based UI, the InfiniiVision 3000G X-Series oscilloscope enables you to work in whatever way is best for you.

Keysight’s InfiniiVision 3000G X-Series oscilloscope come in 2-channel models, 4-channel models, and mixed signal oscilloscope (MSO) models with bandwidths ranging from 100 MHz up to 1 GHz.

All models are enhanced with standard features (that you would typically expect to pay extra for) including:

  • Powerful triggering and decoding serial buses including I2C, SPI, UART/RS232/RS485, I2S, and USB-PD
  • High performance mask and measurement limit testing enabled in hardware
  • Frequency response analysis (Bode plots)
  • Waveform & measurement histograms
  • Built-in function/arbitrary waveform generator
  • HDTV video analysis
  • LAN/VGA I/O communication
  • PathWave BenchVue Oscilloscope software for control, automation, and offline analysis
