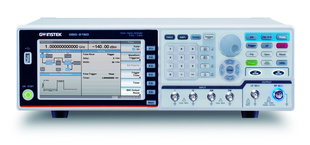

GW Instek GSG-2160 (GPIB) (CE) Vector Signal Generator

Ingyenes szállítás

Frequency range: 9 kHz - 6 GHz
Frequency resolution: 1 mHz
Standard 10 ppm frequency stability, 2 ppm aging rate. Optional AUX (OCXO): 10 ppb frequency stability, 0.1 ppm aging rate
Amplitude range: -140 dBm to +20 dBm
0.01 dBm amplitude setting resolution
Amplitude setting unit: dBm, dBµV, Vrms
Phase noise: <-117 dBc/Hz (real) @1 GHz output and 20 kHz offset>
The sampling speed of digital modulation signal (I/Q) output reaches 180MSa/s
Frequency/amplitude switching speed: ≤ 5 ms
Built-in LF/RF signal output, Pulse signal output
The series has built-in AM, FM, PM analog signal modulation functions
Provides USB, LAN and GPIB (option), commands comply with SCPI standards
Supports IQ modulation signal output. Up to 60 MHz baseband I or Q modulation signal output. Up to 120 MHz RF I+Q modulation signal output. Built-in ASK, PSK, APSK, QAM, FSK, MSK, self-defined IQ/FSK digital signal modulation functions

More detailed specifications and dimensions of available models are specified in data sheet. Részletes információk

nettó ár	€ 14 190,00
bruttó ár	€ 18 021,30
Kérjük, töltse ki a kötelező mezőket
Elérhetőség	Kérésre
Termékkód	GW_GSG-2160 (GPIB) (CE)

Kapcsolódó termékek

Szavatosság 24 hónap

A gyártó weboldala

Részletes információ
Videók és letöltések

Részletes leírás GW Instek GSG-2160 (GPIB) (CE) Vector Signal Generator

The GSG-2000 series is a basic RF vector signal/ signal generator that covers a frequency range from 9 kHz to 6 GHz. It is suitable for applications in communications education, RF component testing (such as amplifiers, antennas, and filters), automotive electronic signal testing, and IoT applications. It meets the testing requirements of RF products during production and development stages.

Compared to its main competitors, the GSG-2000 series offers superior specifications including a wide amplitude output range of +20 dBm to -140 dBm, lower phase noise of -117 dBc/Hz, and high frequency accuracy with 10 ppm frequency stability and 2 ppm aging rate. Users have the option to enhance frequency stability and aging rate by selecting the OCXO (Oven Controlled Crystal Oscillator) option, which provides 10ppb stability and 0.1 ppm aging rate.

For the signal modulation, the entire series has built-in AM, FM, and PM analog modulation, and GSG-2160 features a digital signal modulation function with a maximum bandwidth of 60 MHz digital signal output, supporting ASK, PSK, APSK, QAM, FSK, MSK, User-defined IQ, User-defined FSK modulation signals.

Furthermore, the GSG-2000 series also provides LF signal and Pulse signal output. The LF signal allows users to output Sine, Square, Triangle/Ramp, Gaussian Noise signals, and the Pulse signal output can simulate pulse wave applications of various widths. In addition to the above signal outputs, GSG-2000 also provides AM/FM/digital IQ signal input, as well as independent output ports for digital I or Q signals.

GSG-2000 adopts a seven-inch TFT LCD display that can fully display the parameters and status set by the user, and the series also provides USB, LAN, GPIB (option) communications interfaces, and provides standard SCPI-compatible commands to support remote control . GSG-2000 is designed for 3U high standard rack size.
