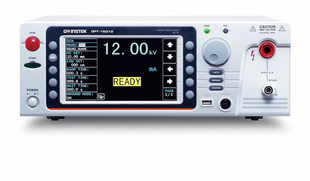

GW Instek GPT-15012 (CE) DC 12kV/IR 5kV Electrical Safety Analyzer
- DC 12kV / IR 5kV
- Comply with IEC 61010-2-034
- 7”TFT LCD
- Manual / Auto Mode
- RMS Current Measurement
- Zero Crossing Turn-on Operation
- Controllable Ramp-up & Ramp-down Time
- Capacitive Load Testing Capability up to 47μF
- Statistics & Analysis Function
- Sweep Function for DUT Characteristic Analysis
- Internal Storage & USB Storage available
- Setting Data Export / Import
- Rear panel output available
- Interface : RS-232C, USB host/device, Signal I/O and option GPIB or LAN
More detailed specifications and dimensions of available models are specified in data sheet. Részletes információk
| nettó ár | € 4 952,00 |
| bruttó ár | € 6 289,04 |
| Elérhetőség | Kérésre |
| Termékkód | GW_GPT-15012 |
Szavatosság 24 hónap
Részletes leírás GW Instek GPT-15012 (CE) DC 12kV/IR 5kV Electrical Safety Analyzer
GW Instek introduces the high DC voltage model of safety analyzer - the GPT-15012, which is the safety analyzer to comply with IEC 61010-2-034 (Safety requirement for electrical requirement for measurement, control and laboratory use – particular requirements for measurement equipment for insulation resistance and test equipment for electric strength), which stipulates that the requirements of the software and hardware interfaces must be followed while designing high voltage and insulation resistance test and measurement instruments so as to ensure that users are provided with necessary protection and warning while using the instruments.
Due to the high voltage output characteristics of GPT-15012, it is particularly suitable for the safety testing requirements of various high-voltage insulation products, such as energy storage/photovoltaic components, high-voltage relays, wires and cables, etc.
