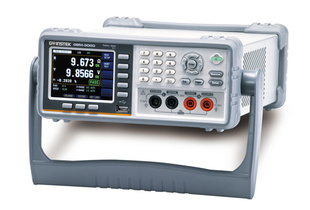

GW Instek GBM-3080 Battery Meter (80V)

Ingyenes szállítás

3.5’ TFT LCD (320x240)
Measurement items: DC voltage and AC resistance
Voltage measurement: 80V
Resistance measurement: 0mΩ~ 3.2kΩ(max.)
Basic accuracy for voltage measurement: 0.01%
Basic accuracy for resistance measurement: 0.5%
Measurement resolution up to 0.1μΩ and 10μV, suitable for single-cell measurement
Independent GO/NOGO determination function for voltage and resistance respectively
The judgment mechanism of test lead (probe) disconnect/contact failure is to ensure the measurement reliability
Standard interfaces: USB host/device, RS-232C and Handler

More detailed specifications and dimensions of available models are specified in data sheet. Részletes információk

nettó ár	€ 2 282,00
bruttó ár	€ 2 898,14
Kérjük, töltse ki a kötelező mezőket
Elérhetőség	Kérésre
Termékkód	GW_GBM-3080

Kapcsolódó termékek
kiegészítők

Szavatosság 24 hónap

A gyártó weboldala

Részletes információ
Videók és letöltések

Részletes leírás GW Instek GBM-3080 Battery Meter (80V)

GW Instek launches a new series of desktop battery tester, the GBM-3000 series, which uses AC 1kHz as the test signal and measures battery's voltage and internal resistance to 1000V (GBM-3100H), 300V (GBM-3300) and 80V (GBM-3080). The series features 3.5" TFT LCD, 4-wire measurement method, high-resolution (6-digit voltage / 5-digit resistance) measurement display capability, and independent GO/NOGO determination of voltage and resistance, various communications interfaces, etc. to meet various types of battery measurements, ranging from single cell, battery cell, to the end product (battery), etc. so as to facilitate users in achieving accurate measurements at all stages of production.
